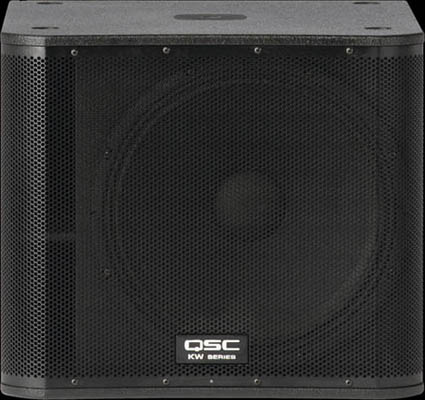

Subwoofer attivo QSC KW 181
KW181
Configuration 18" subwoofer
Transducer 18" cone transducer
Frequency Response (-6 dB) 38 Hz - 124 Hz
Frequency Range (-10 dB) 34 Hz - 143 Hz
Maximum SPL1 135 dB peak
Amplifiers
Power Output 1000 W Class D continuous 2000 W peak
Input Impedance (ohms) XLR / ¼": 38k balanced / 19k unbalanced
Controls Power, Gain, LF Mode (Normal/DEEP™), Polarity (Normal/Reverse), Front LED (On/Off/Limit)
Indicators Power, Signal, Standby, Limit

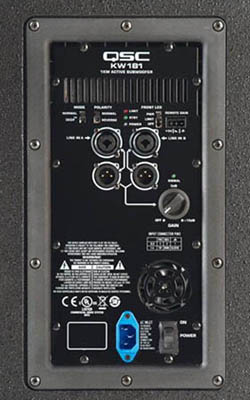

Connectors Dual balanced female XLR/¼" line level input, Dual Balanced male XLR full range line level out, Remote gain control, Locking IEC power connector
Cooling On demand, 50 mm variable speed fan
Amplifier Protection Thermal limiting, output overcurrent, overtemperature muting, GuardRail™
Transducer Protection Thermal limiting, excursion limiting
AC Power Input Universal power supply 100 - 240 VAC, 50 - 60 Hz
AC Power Consumption(1/8 Power) 230 VAC, 1.13 A
Enclosure Material 15 mm painted birch plywood
Finish Black textured paint
Grille Rugged Powder-Coated Steel Grille
Dimensions (HWD) 510 mm x 595 mm x 761 mm with casters Weight (Net) 40 kg
